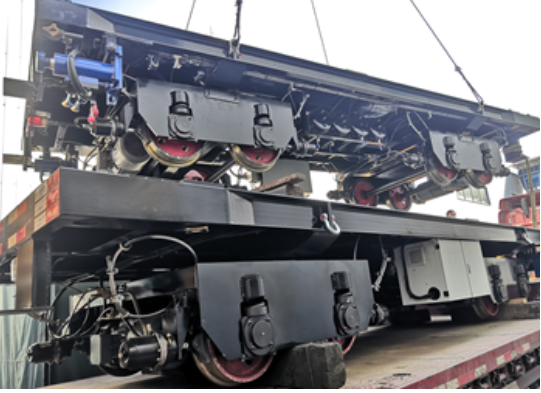

Product Introduction
1. Dual motor drive, motor power of 2×15Kw, powerful;
2. Four-bridge dual steering frame design, stable operation, strong load-bearing capacity;
3. Air brake design with air pressure of 0.7Mpa, storage capacity of 120L, ensuring safe and reliable parking;
4. Motor frequency conversion infinite speed control, more convenient operation;
5. The vehicle is equipped with front and rear hooks, which can be connected or operated independently (requires an external 50KW generator set).
Operating route conditions
Track gauge: 1435mm
Restricted curve radius: 100m
Restricted slope: 40‰
Self-propelled car technical parameters
Power: 15Kw×2
Maximum operating speed: 10Km/h
Brake distance: 3.5m (at 10KM/h)
Positioning speed: 2.5Km/h
Maximum traction operating speed: 20KM/h
Dimensions (length x width x height): 7700x2440x980mm
Weight: 5T
Load capacity: 12 tons
